N6-30L/DZ45
    Speed range：0.1-300 rpm
    Flow range：0.0019-28.15 L/min
Optional pump head：
DZ45
Online consultation
Download

Product Introduction

  • 3.2" LCD screen displays both flow rate and motor speed.
  • Keypad and digital knob control, easy operation.
  • Various external control interfaces support RS232/RS485 communication.

Technical Parameter

Flow rate range 0.6-1800 L/h
Speed range 0.1-300 rpm
Flow rate accuracy < ±0.5%
Speed resolution 0.1 rpm
Fixed time dispensing function 0.1 s-9999 h
Control method Mechanical keypad + Rotary encoded switch
Display 3.2" high definition LCD screen
Start/stop, direction signal Passive switch signal, such as foot pedal switch; Active switch signal: 5V-24V
External speed control signal 0-5V, 0-10V, 4-20mA (for option)
Output interface Output motor working status (Open-collector output)
Power supply AC 220V±10% 50Hz/60Hz (standard); AC 110V±10% 50Hz/60Hz (optional)
Power consumption < 300W
Communication interface RS232, RS485 support MODBUS protocol (RTU mode)
Motor type Closed-loop stepper motor
Drive dimension (L×W×H) 262.4×302×267.9 mm
Relative humidity < 80%
Environment temperature 0-40℃
Back suction angle 0-360°

Pump Head Parameter

Drive Pump Head Motor Tubing Size Speed(rpm) Flow Rate(L/min)
N6-30L DZ45 Closed-loop stepper motor 88#, 92#, 189#, 191#, 193# 0.1-300 0.0019-28.15

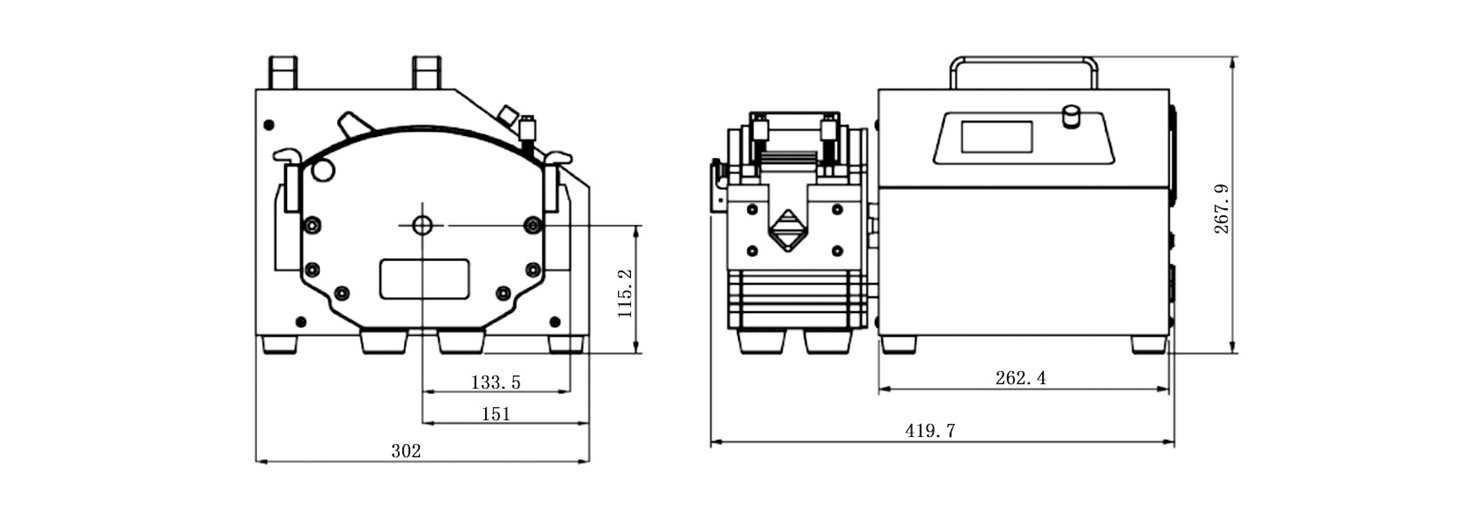

Dimension（Unit：mm）
