PDS I
3-Year Warranty

Product Introduction

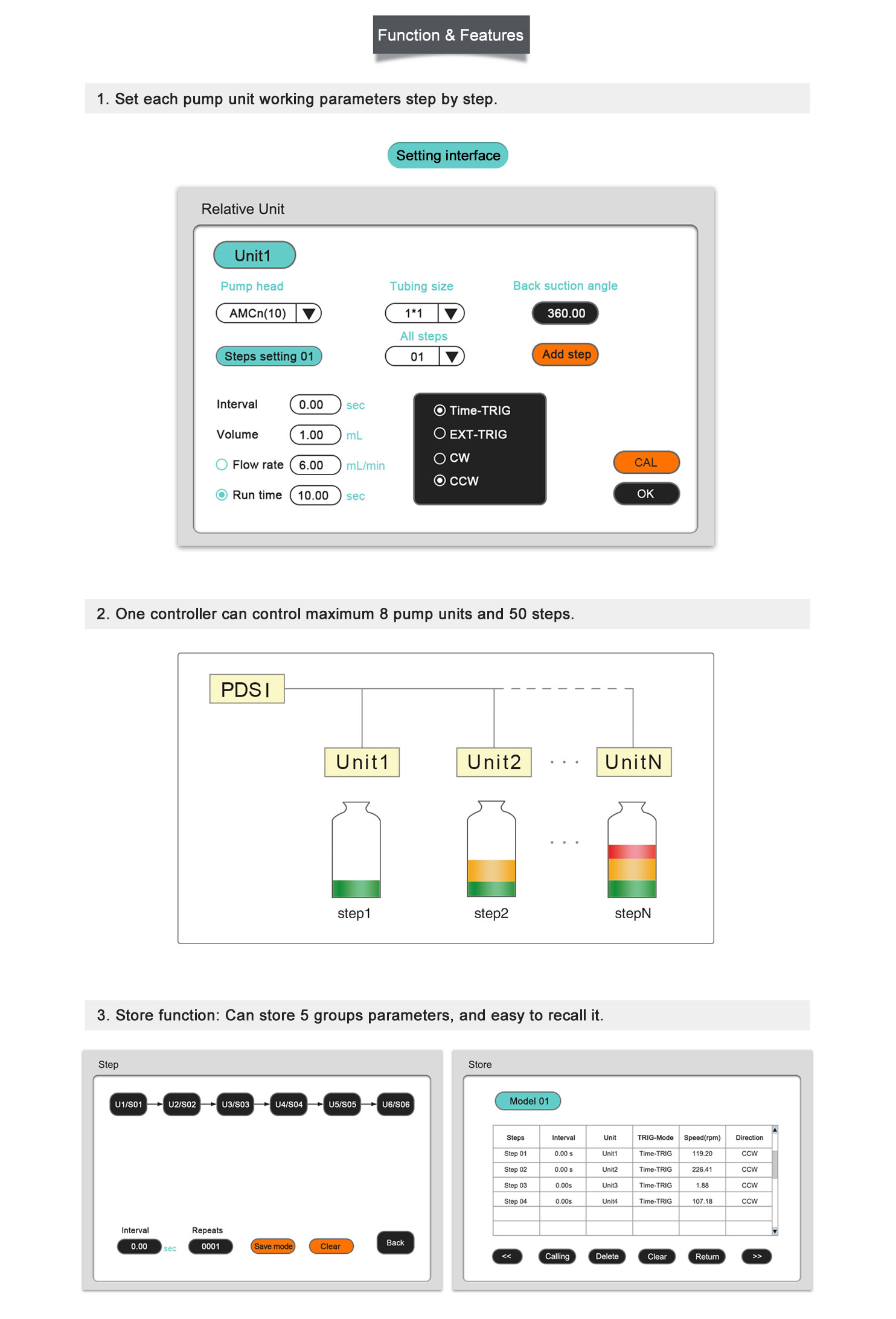

  • 7 inch touch screen control, easy and convenient operation.

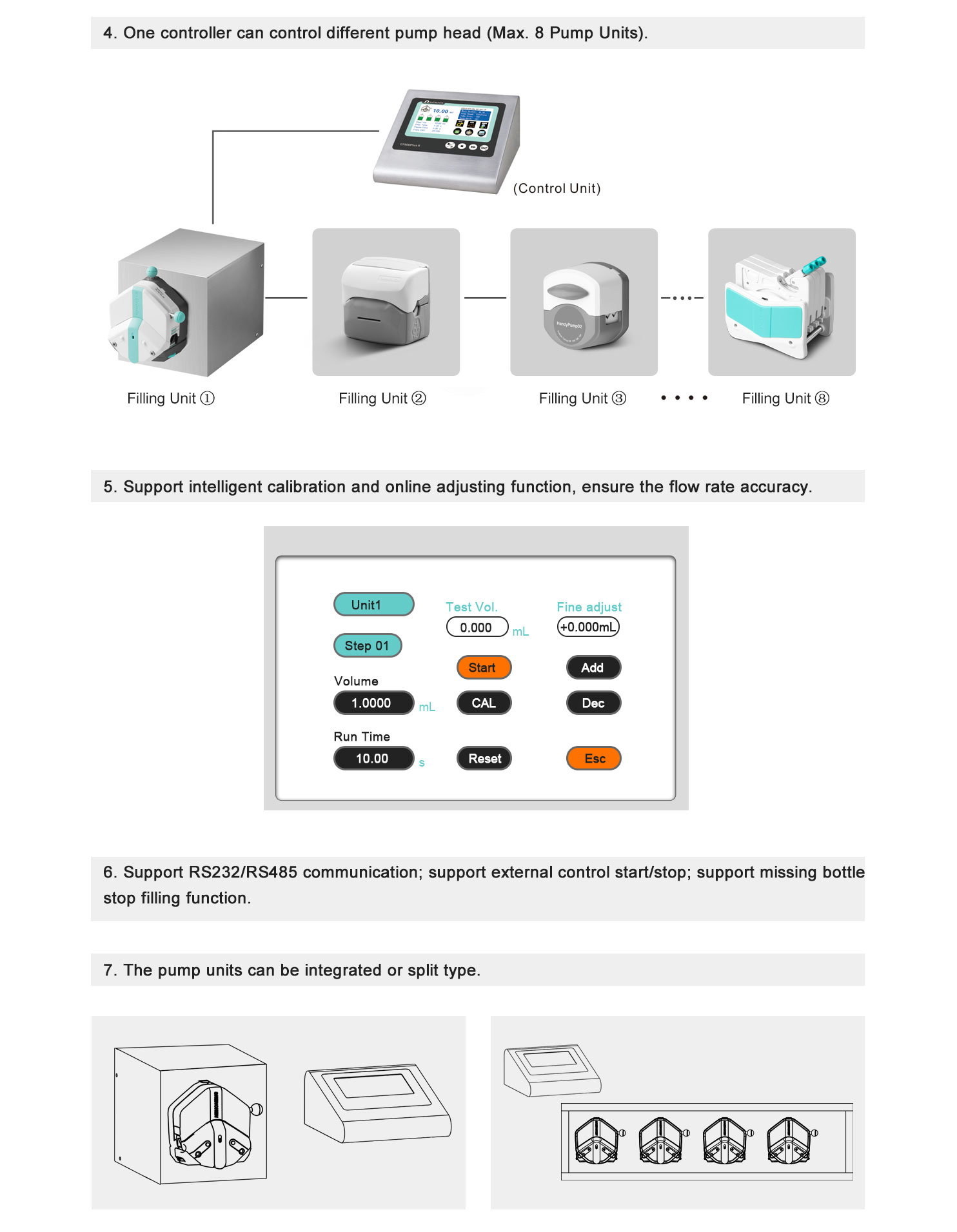

  • One controller can control maximum 8 pump units.
  • Each unit working step in logic working mode, different liquids can added in different proportions in order to complete the automatic mixing work.
  • Pump units can be separately or integrated.
  • Different pump units can fit for same or different pump heads.
  • Pump can be cotrolled with touch screen, foot switch, switch signal and communication.



Technical Parameter

Volume resolution 0.01mL
Time resolution 0.01s
Back suction angle 0~360°
Store 5 parameter programs can be stored and easily recalled
External control method Passive switch signal: Foot pedal, Active switch signal: Universal 5~24V
Communication method RS232/RS485，supports Modbus protocol(RTU mode)
Pump unit power supply AC 220V±10% 50Hz/60Hz(Standard), AC 110V±10% 50Hz/60Hz(Optional)
Controller power supply 5VDC/2A adapter(Standard)
Temperature 0~40℃
Relative humidity ＜80%
IP rate IP31
