PDS IV
3-Year Warranty

Product Introduction

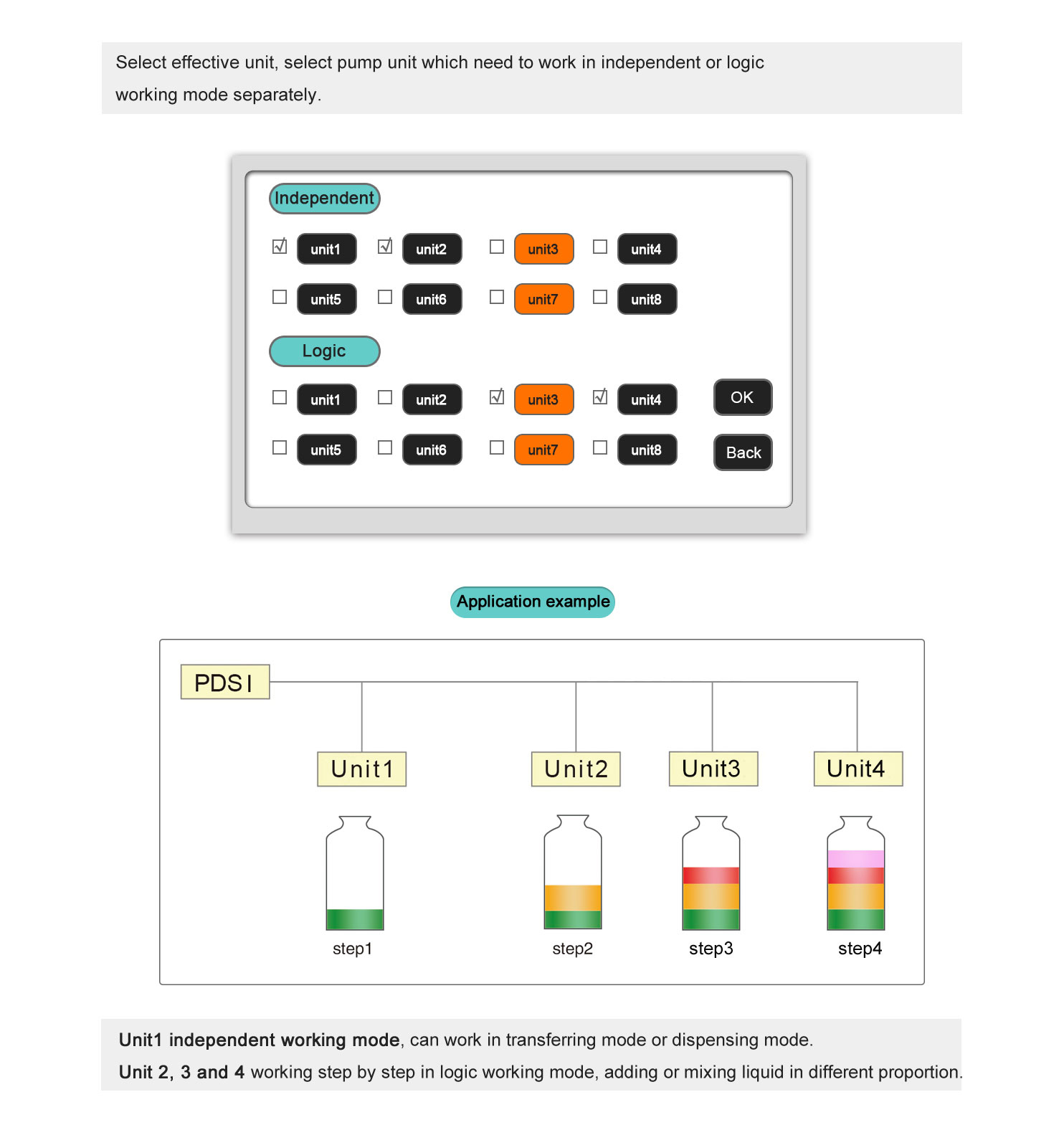

Comprehensive working mode: Including all the function of logic working mode (PDS I), independent working mode (PDS II), independent and steps filling working mode (PDS III).

Technical Parameter

Dispensing volume range 0.1-9999.99mL
Dispensing time range 0.5-9999.99s
Pause time range 0.5-9999.99s
Repeat number range 1-9999, 0 means unlimited.
Volume resolution 0.01mL
Time resolution 0.01s
Back suction angle 0~360°
Store 5 parameter programs can be stored and easily recalled
External control method Passive switch signal: Foot pedal, Active switch signal: Universal 5~24V
Communication method RS232/RS485, supports Modbus protocol(RTU mode)
Pump unit power supply AC 220V±10% 50Hz/60Hz(Standard), AC 110V±10% 50Hz/60Hz(Optional)
Controller power supply 5VDC/2A adapter(Standard)
Temperature 0~40℃
Relative humidity ＜80%
IP rate IP31

OSD
