DF600 Plus
3-Year Warranty
    Speed range：0.1-600 rpm
    Flow range：0.007-2280 mL/min
Optional pump head：
YZ1515x
YZ2515x
Online consultation
Download

Product Introduction

DF series intelligent-type integrated filling system consists of a control unit and integrated filling units. Each group includes 4 filling units. One controller manages 4 groups, totaling 16 filling units. Features a 4.3-inch color touch screen display that dynamically shows the working status, filling data, parameter settings, and system configuration. Filling precision: ±0.5%-1%.
Supports intelligent calibration and online micro-adjusting functions. Can be connected to foot-pedal switches or receive external switch signals for remote control. Provides a unique motor status output signal for filling monitoring.
Industry applications: Pharmaceutical machinery, filling equipment, pharmaceuticals, cosmetics, food, beverage dispensing, and oral liquid filling.

Technical Parameter

Speed range 0.1-600 rpm
Filling volume range 0.1-9999.99 mL
Filling time range 0.1-9999.99 s
Pause time range 0.5-9999.99 s
Filling volume resolution 0.01 mL
Time resolution 0.01 s
Copy numbers 1-9999 times, setting "0" means unlimited
Back suction angle 0-3600°
Dispensing accuracy <±0.5%
Motor type Stepper motor
Display 4.3-inch industrial grade true color LCD screen
Control method Touch screen and mechanical keypad
Keypad lifetime 300,000 times
Start/stop, direction Passive switch signal, such as foot pedal switch; Active switch signal: 5-24V universal
Output interface Output motor working status (open-collector output)
Communication interface RS485 communication Modbus protocol (RTU mode)
Power supply AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)
Drive dimension 237.4×152×158 mm (L×W×H)
Drive weight 4.2 Kg
Power consumption Each filling unit <50 W
Condition temperature 0-40℃
Relative humidity <80%

Parameter

Product Composition and Flow Rate Range


Drive Pump Head Pump Head Material Tube Clamp Material Tubing （Motor Speed 0.1-600rpm）
Flow Rate mL/min
Tubing size ID×Wall Thickness(mm)
DF600 Plus YZ1515x PSF/PPS —— 13# 0.8×1.6 0.007-42
14# 1.6×1.6 0.027-162
19# 2.4×1.6 0.055-330
16# 3.1×1.6 0.082-492
25# 4.8×1.6 0.17-1020
17# 6.4×1.6 0.29-1740
18# 7.9×1.6 0.38-2280
YZ2515x 15# 4.8×2.4 0.17-1020
24# 6.4×2.4 0.29-1740


Filling Volume Reference Parameter(Media is water)


Drive Pump Head Tubing Filling Volume（mL） Filling Time（s） Accuracy（±%） Output（pcs/min） Motor Speed（rpm）
DF600 Plus YZ1515x
YZ2515x		 13# 0.1 0.5 ±5μL 40 204.083
13# 0.3 0.7 1.5 35 426.251
13# 0.5 1 0.8 30 516.081
13# 1 2 0.5 20 517.152
14# 2 1 1 30 446.724
14# 3 1.5 0.8 24 446.479
19# 5 1.2 1 27 454.919
16# 7 1 0.5 30 457.705
25#15# 10 1 1 30 303.426
25#15# 15 1 0.8 30 461.273
25#15# 20 1.2 0.5 27 518.945
17#24# 30 1.2 0.8 27 462.725
17#24# 50 2 0.5 20 461.595
18# 80 2.5 0.5 17 427.274
18# 100 3 0.5 15 446.583

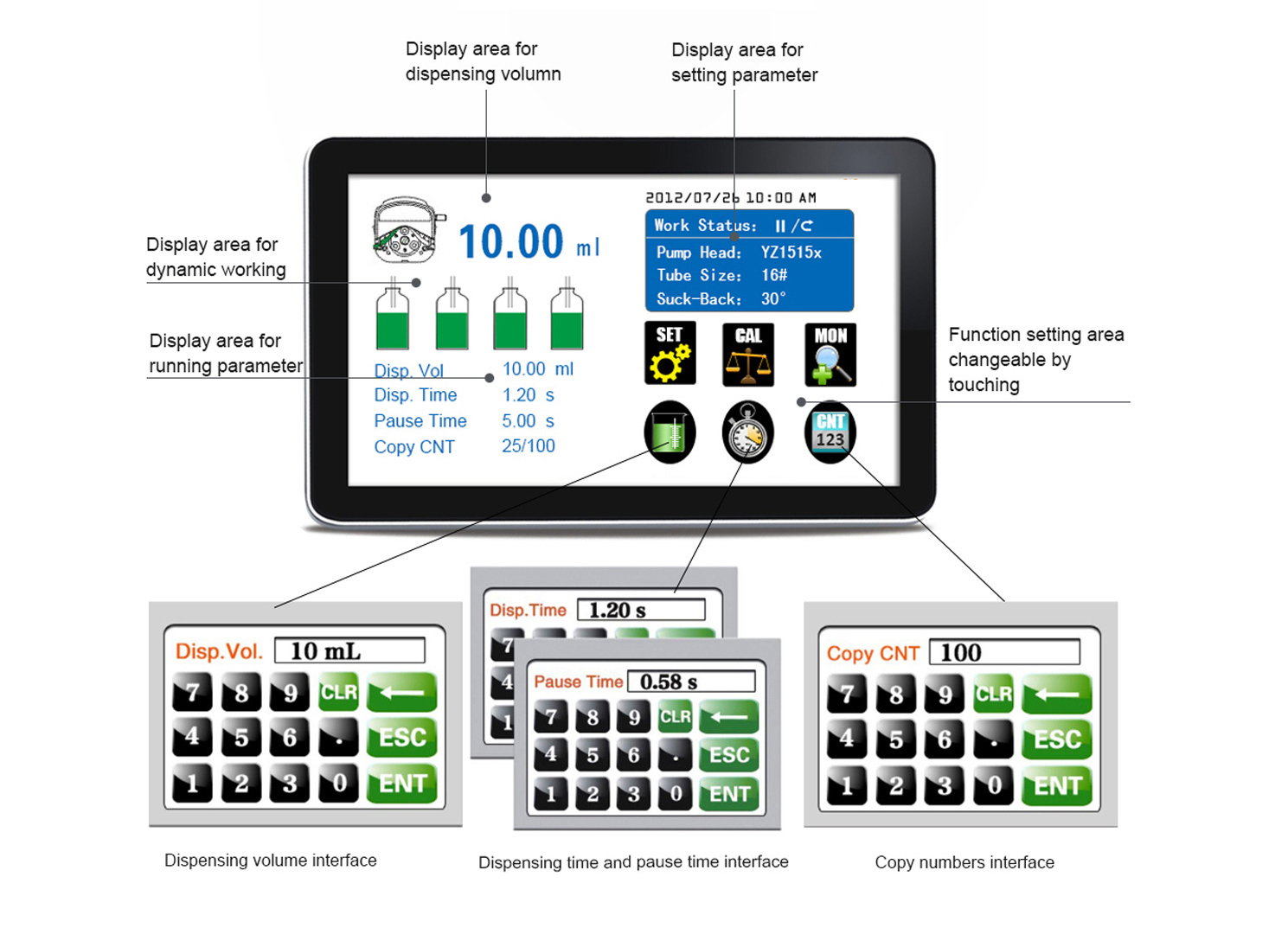

OSD

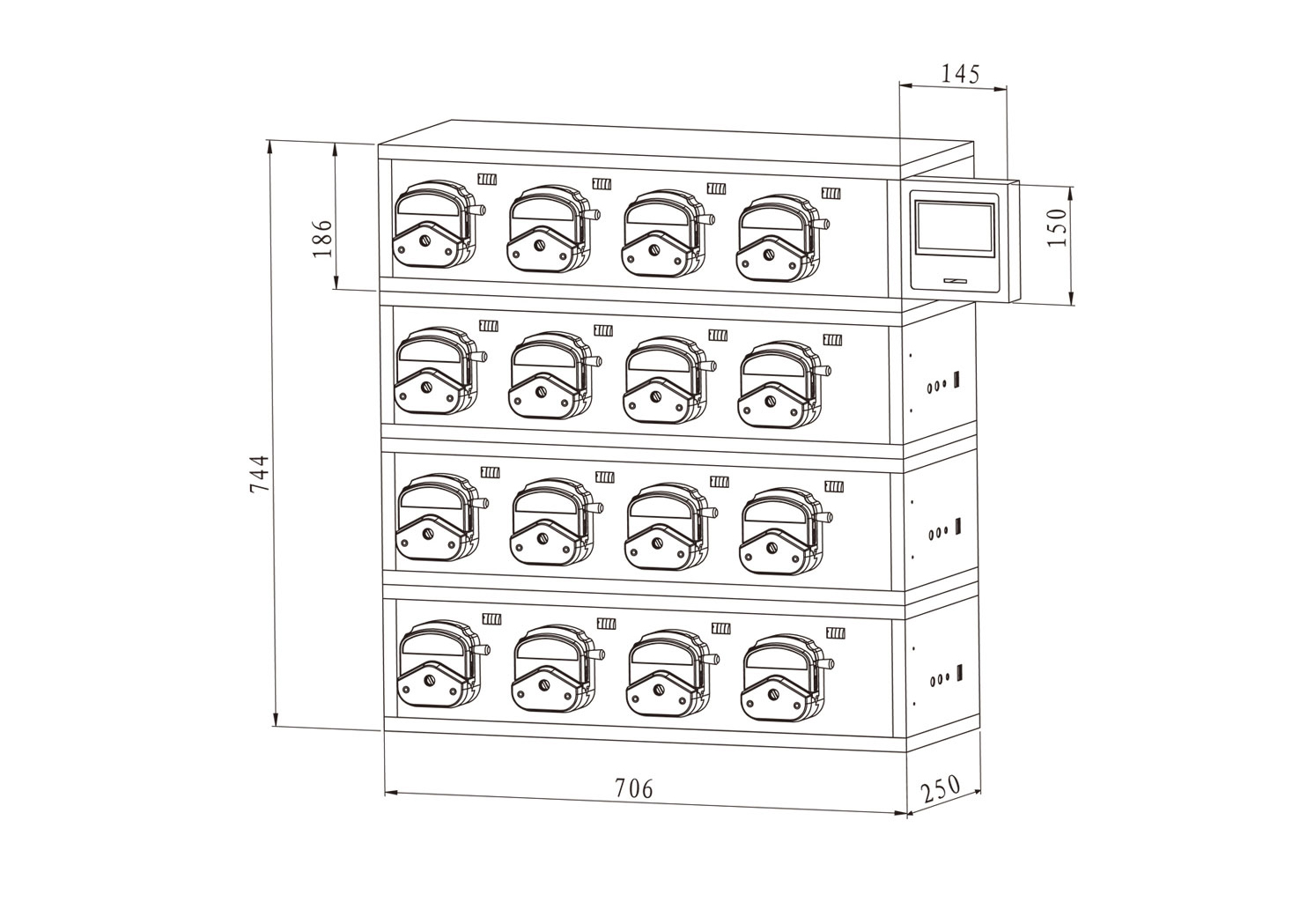

Dimension（Unit：mm）
