M6-12L

0.1-600 rpm

0.69-12000 mL/min

Optional pump head：

YZ35

Online consultation

Download

Product Introduction

Closed-loop stepper motor drive, precise control, strong power, low vibration and low noise.
3-digit digital LED display of motor speed, rotary encoder switch control.
Suitable for industrial sites, transferring liquid with large flow and high precision.
304 stainless steel housing, conforming to GMP requirements. Also, adopting seamless welding techniques, avoiding the liquid leaking into the pump housing, protecting the internal circuit effectively.
Circuit board sprayed with three paints, anti-dust, anti-moisture, anti-static, resisting corrosion.

Flow rate range	0.69-12000mL/min
Speed range	0.1-600rpm
Speed resolution	0-100rpm, 0.1rpm; 100-600rpm, 1rpm
Flow rate accuracy	<±0.5%
Motor type	Closed-loop stepper motor
Display	3-digit digital LED
Control method	Mechanical keypad
Keypad lifetime	300,000 times
Speed control	Rotary encoder switch
External speed control signal	0-5V(standard), 0-10V, 4-20mA(optional)
Start/stop, direction signal	Passive switch signal, such as foot pedal, Active switch signal: 24V default
Communication interface	RS232(standard), Shenzhen-N232 communication protocol; RS485(optional), Modbus protocol(RTU mode)
Power supply	AC 220V±10% 50Hz/60Hz (standard), AC 110V±10% 50Hz/60Hz (optional)

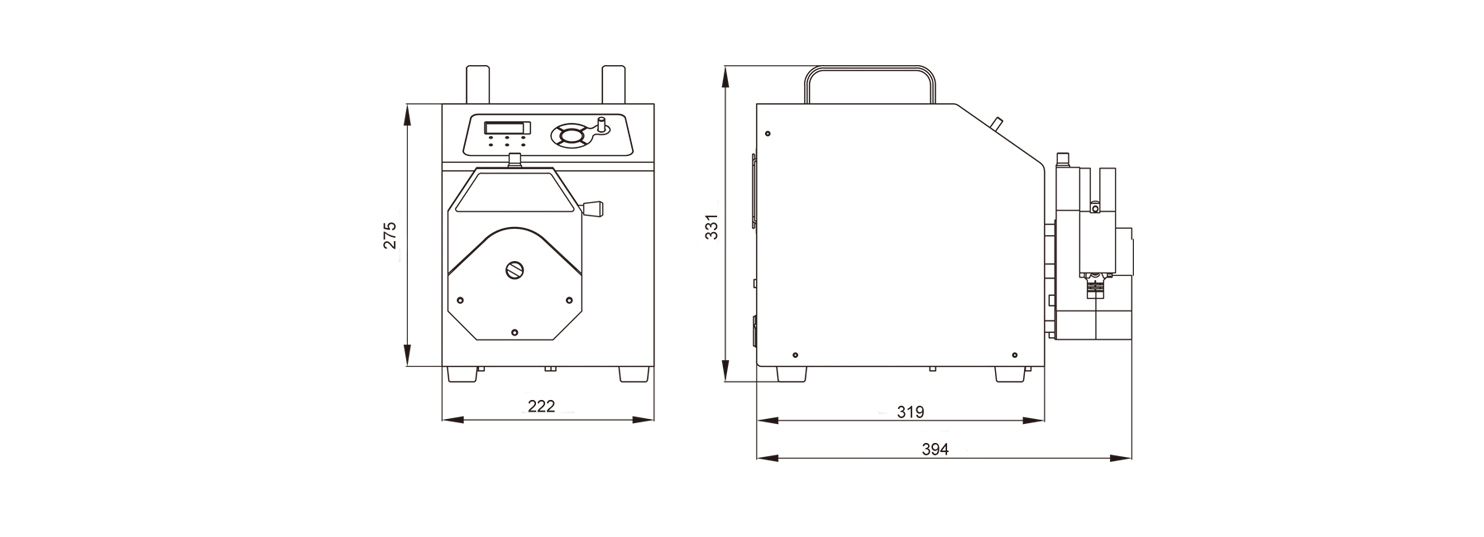

Drive dimension(L×W×H)	283×192×274 mm
Drive weight	7.85kg
Power consumption	<180W
Condition temperature	0-40℃
Relative humidity	<80%

Drive	Motor Type	Pump Head	Tubing Size	Speed range(rpm)	Flow rate(mL/min)
M6-12L	Closed-loop stepper motor	YZ35	26#，73#，82#	0.1-600	0.69-12000
