M6-3L

0.1-600 rpm

0.211-3600 mL/min

Optional pump head：

DZ25-3L

Online consultation

Download

Product Introduction

Closed-loop stepper motor drive, precise control, strong power, low vibration and low noise.

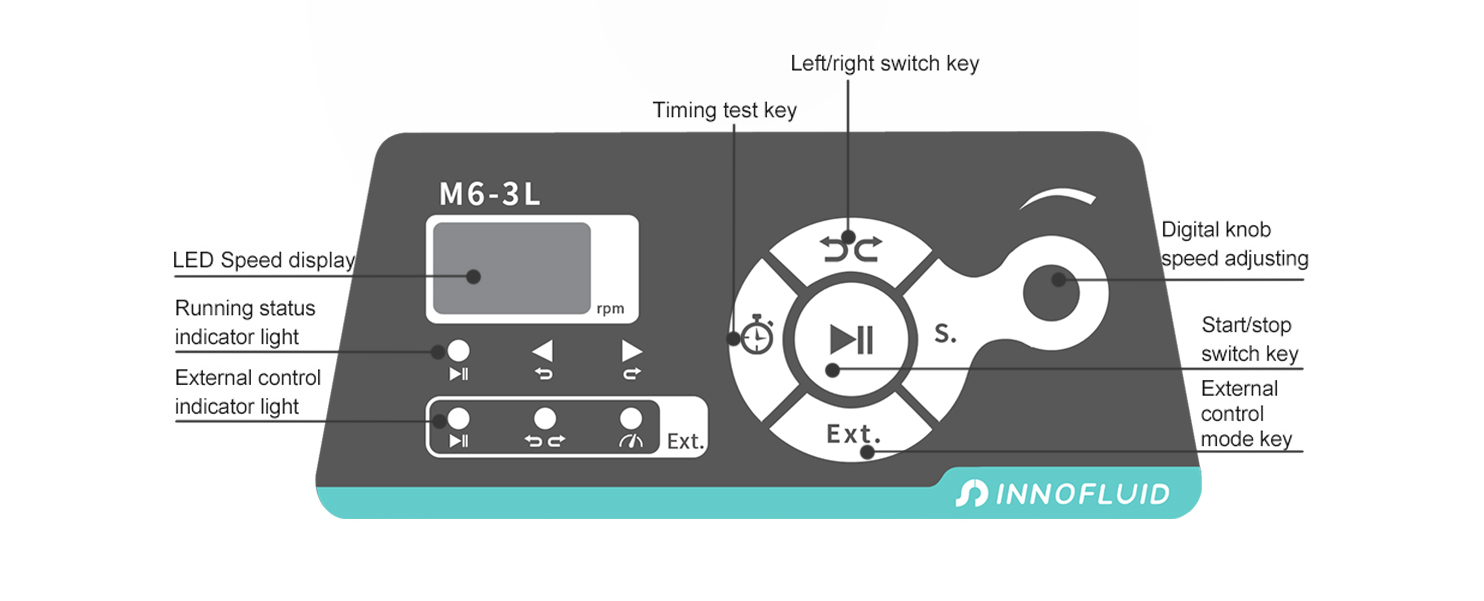

3-digit digital LED display of motor speed, rotary encoder switch control.
Suitable for industrial sites, transferring liquid with large flow and high precision.
304 stainless steel housing, conforming to GMP requirements. Also, adopting seamless welding techniques, avoiding liquid leaking into the pump housing, protecting the internal circuit effectively.
Circuit board sprayed with three anti-corrosion paints: anti-dust, anti-moisture, and anti-static.

Flow rate range	0.211~3600mL/min
Speed range	0.1-600rpm
Speed resolution	0-100rpm, 0.1rpm; 100-600rpm, 1rpm
Flow rate accuracy	<±0.5%
Outlet pressure	0.3MPa
Motor type	Servo motor
Display	3-digit digital LED
Control method	Mechanical keypad
Keypad lifetime	300,000 times
Speed control	Rotary encoder switch
External speed control signal	0-5V(standard), 0-10V, 4-20mA(optional)
Start/stop, direction signal	Passive switch signal, such as foot pedal; Active switch signal: 24V default
Communication interface	RS232(standard), Shenzhen-N232 communication protocol; RS485(optional), Modbus protocol(RTU mode)
Power supply	AC 220V±10% 50Hz/60Hz(standard), AC 110V±10% 50Hz/60Hz(optional)

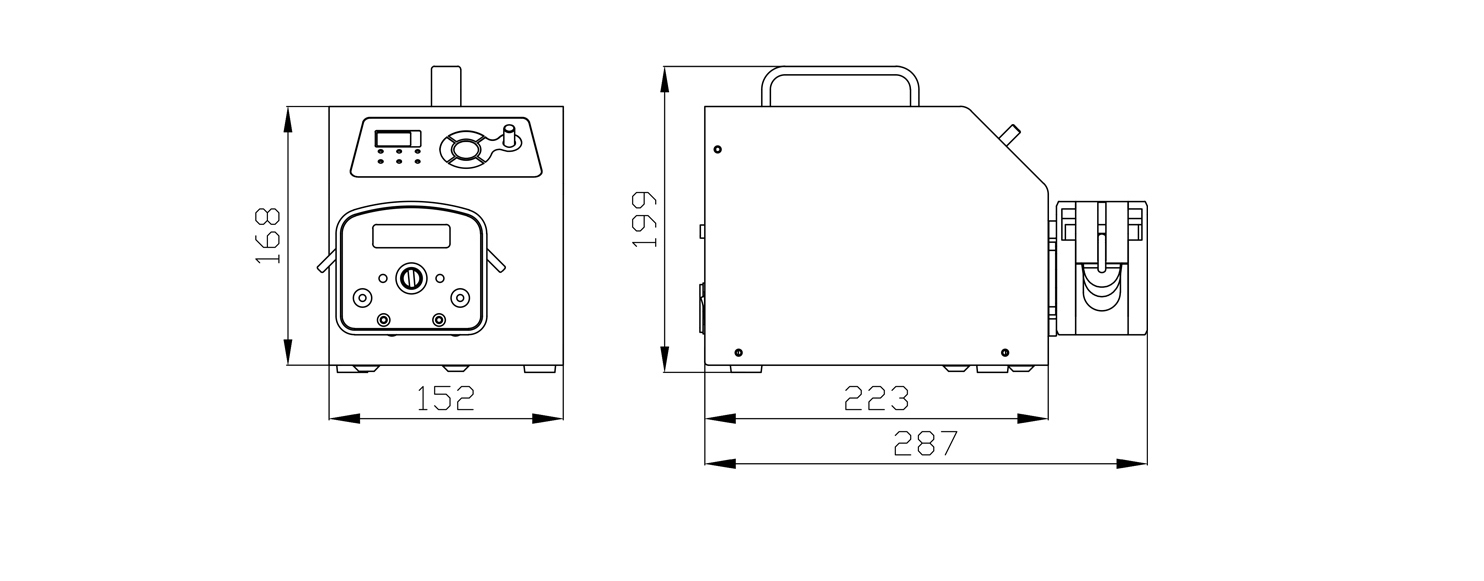

Drive dimension(L×W×H)	223×152×199mm
Drive weight	5.02kg
Power consumption	<80W
Condition temperature	0-40℃
Relative humidity	<80%
IP rate	IP31

Drive	Motor Type	Pump Head	Tubing Size	Speed range(rpm)	Flow rate(mL/min)
M6-3L	Closed-loop stepper motor	DZ25-3L	15#，24#，35#，36#	0.1-600	0.211-3600
