FedroTek platinum-cured silicone tubing is special for peristaltic pumps, high elasticity, softness, high transparency, smooth inner wall, low protein adhesion, and low protein penetration.
Non-toxic, physiologically inert, UV resistant, ozone resistant, high and low temperature resistant.
Temperature range：-30℃~+200℃
The silicone tubing can withstand repeated high temperatures and ultraviolet disinfection. Ethylene oxide, high-temperature steam, or irradiation can be used for disinfection. It is recommended to use ?high-temperature steam. Generally, the steam temperature is 120℃ and the time is 30 minutes.
| SPECIFICATION | INTERNAL DIAMETER(ID) | OUTSIDE DIAMETER(OD) | WALL THICKNESS | Tubing Pressure-bearing(Mpa) | LENGTH(M/PKG) | ||||
| INCH | MM | INCH | MM | INCH | MM | CONTINUOUS | INTERVAL | ||
| 14# | 1/16 | 1.6 | 3/16 | 4.8 | 1/16 | 1.7 | 0.17 | 0.27 | 2M/15M |
| 19# | 3/32 | 2.4 | 7/32 | 5.6 | 1/16 | 1.7 | 0.17 | 0.27 | |
| 16# | 1/8 | 3.2 | 1/4 | 6.4 | 1/16 | 1.6 | 0.17 | 0.27 | |
| 25# | 3/16 | 4.8 | 5/16 | 8 | 1/16 | 1.6 | 0.14 | 0.24 | |
| 17# | 1/4 | 6.4 | 3/8 | 9.5 | 1/16 | 1.65 | 0.1 | 0.14 | |
| 18# | 5/16 | 8 | 7/16 | 11.1 | 1/16 | 1.6 | 0.07 | 0.1 | |
| 15# | 3/16 | 4.8 | 3/8 | 9.5 | 3/32 | 2.55 | 0.17 | 0.27 | |
| 24# | 4/16 | 6.4 | 7/16 | 11.1 | 3/32 | 2.55 | 0.17 | 0.27 | |
| 35# | 5/16 | 7.9 | 1/2 | 12.7 | 3/32 | 2.4 | 0.14 | 0.24 | |
| 36# | 3/8 | 9.5 | 9/16 | 14.3 | 3/32 | 2.4 | 0.14 | 0.24 | |
| 26# | 1/4 | 6.4 | 1/2 | 13 | 1/8 | 3.3 | 0.2 | 0.27 | |
| 73# | 3/8 | 9.5 | 5/8 | 15.9 | 1/8 | 3.3 | 0.2 | 0.27 | |
| 82# | 1/2 | 12.5 | 3/4 | 19.1 | 1/8 | 3.3 | 0.2 | 0.27 | |
| 92# | 1 | 25.4 | 3/8 | 35 | 2/8 | 4.8 | 0.25 | 0.3 | |

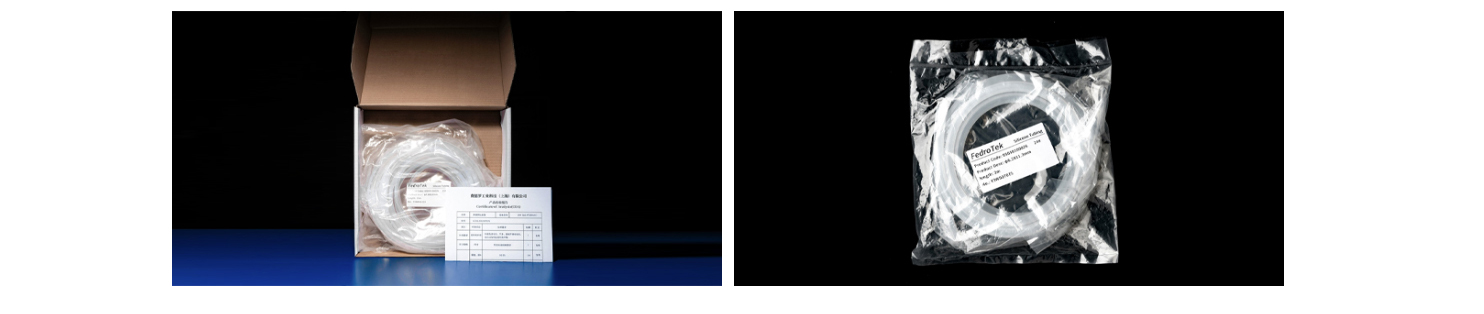

Double layer sterile packaging
- In biological cell culture experiments, it is necessary to accurately control the transmission of culture medium, waste removal, transplantation and transfer of cells. Federo silicone tubes can be repeatedly sterilized at high temperatures. They have the advantages of smooth inner wall, low protein adhesion, and low protein penetration, ensuring the safety of experiments. Efficiency and accuracy.
- Federo silicone tubes are used in the brewing industry to pump yeast and food additives; they are used to achieve clean and quantitative filling in beer and beverage production.
- In the biopharmaceutical process, various reagents need to be accurately transferred to maintain the stability in the reactor and ensure product quality. Federo silicone tubes are manufactured and packaged in a 100,000-level dust-free clean workshop, and can be repeatedly sterilized at high temperatures to prevent Cross-contamination ensures product quality.
- In medical equipment such as liposuction devices, a peristaltic pump injects a solution containing saline, lidocaine, epinephrine, and sodium bicarbonate into the liposuction site through a Federo silicone tube that can withstand repeated High-temperature and ultraviolet disinfection meet the requirements for safe medical use, and it has high transparency. You can directly observe the infusion situation of the pump tube during use.
