Product Introduction

  • PharMed® peristaltic pump tubing can be used in biopharmaceutical and cell research.
  • Meets ISO 10993 biocompatibility standards.
  • Low permeability, suitable for cell culture, fermentation, synthesis, separation and other processes, and can be repeatedly autoclaved.
  • Meets USP Class VI, FDA, NSF 51 standards.
  • When used in peristaltic pumps, its lifespan lasts 30 times longer than ordinary silicone tubing.

Technical Parameter

Brand Saint-Gobain PharMed? BPT Tubing
Hardness(Shore A) 64
Tensile Strength psi(Mpa) 1000(6.9)
Elongation % 375
Tear Strength lb-f/in(KN/m) 120(21.0)
Proportion 0.98
Water Absorption, %24hrs.@23℃ 0.3
Temperature Resistance -59℃~135℃
Constant compression set rate, %22hrs.@70℃ 27

Disinfection Method

  • High temperature and high pressure sterilization：30 min at 121℃
  • Gas：Ethylene oxide
  • Gamma rays：50 kGy

Specification Parameters

SPECIFICATION MODEL INTERNAL DIAMETER(ID) OUTSIDE DIAMETER(OD) WALL THICKNESS LENGTH(M/PKG)
INCH MM INCH MM INCH MM
13# BPT AY242606 1/32 0.8 5/32 4 1/16 1.6 7.6M
14# BPT AY242003 1/16 1.6 3/16 4.8 1/16 1.6
19# BPT AY242005 3/32 2.4 7/32 5.6 1/16 1.6
16# 06508-16 1/8 3.2 1/4 6.4 1/16 1.6
25# BPT AY242012 3/16 4.8 5/16 8 1/16 1.6
17# BPT AY242017 1/4 6.4 3/8 9.5 1/16 1.6
18# BPT AY242022 5/16 8 7/16 11.1 1/16 1.6
15# 06508-15 1/4 4.8 3/8 9.5 3/32 2.4
24# 06508-24 4/16 6.4 7/16 11.1 3/32 2.4
35# 06508-35 1/4 7.9 4/8 12.7 3/32 2.4
36# 06508-36 3/8 9.5 9/16 14.3 3/32 2.4
73# BPT AY242029 2/4 9.5 5/8 15.9 1/8 3.2
82# BPT AY242038 1/2 12.5 3/4 19.1 1/8 3.2

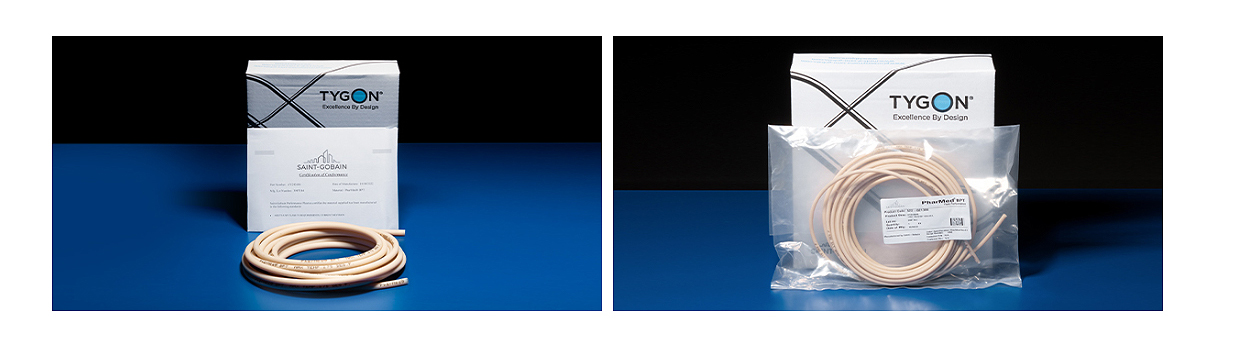

Product Packaging

Individually packaged in original cartons in compliance with GMP regulations
Use packaging bags that do not contain phthalates
