- Plasticizer-free thermoplastic tube.
- Tygon® 2475 high-purity tubing is plasticizer-free, provide an entirely clear and flexible tubing choice for sensitive fluid transfer applications.
- Resistant to chemical corrosion such as strong acid and alkali.
- Virtually unaffected by chemicals and detergents such as acids, alkalis, ketones, salts and alcohols.
- Strong flexibility and bendability, reinforced ribs are embedded in the tubing wall, and the pressure resistance is 8 times that of the non-pressure resistant type.
- Phthalate and plasticizer free (low leaching).
- Does not release harmful and corrosive gases.
- Smooth inner surface, low adsorption.
- Smooth inner surface inhibits particles from remaining on the tubing wall, reducing the possibility of contamination.
- It can also improve fluid flow characteristics by reducing surface area and reducing fluid adhesion to the tubing wall.
- Low adsorption ensures fluid integrity during transfer.
Gas: Ethylene oxide
Gamma: 45kGy
| SPECIFICATION | MODEL | INTERNAL DIAMETER(ID) | OUTSIDE DIAMETER(OD) | WALL THICKNESS | LENGTH(M/PKG) | |||
| INCH | MM | INCH | MM | INCH | MM | |||
| 14# | ACG00003 | 1/16 | 1.6 | 3/16 | 4.8 | 1/16 | 1.6 | 15.2 |
| 16# | ACG00007 | 1/8 | 3.2 | 1/4 | 6.4 | 1/16 | 1.6 | |
| 25# | ACG00012 | 3/16 | 4.8 | 5/16 | 8 | 1/16 | 1.6 | |
| 17# | ACG00017 | 1/4 | 6.4 | 3/8 | 9.5 | 1/16 | 1.6 | |
| 18# | ACG00022 | 5/16 | 8 | 7/16 | 11.1 | 1/16 | 1.6 | |
| 82# | ACG00038 | 1/2 | 12.5 | 3/4 | 19.1 | 1/8 | 3.2 | |

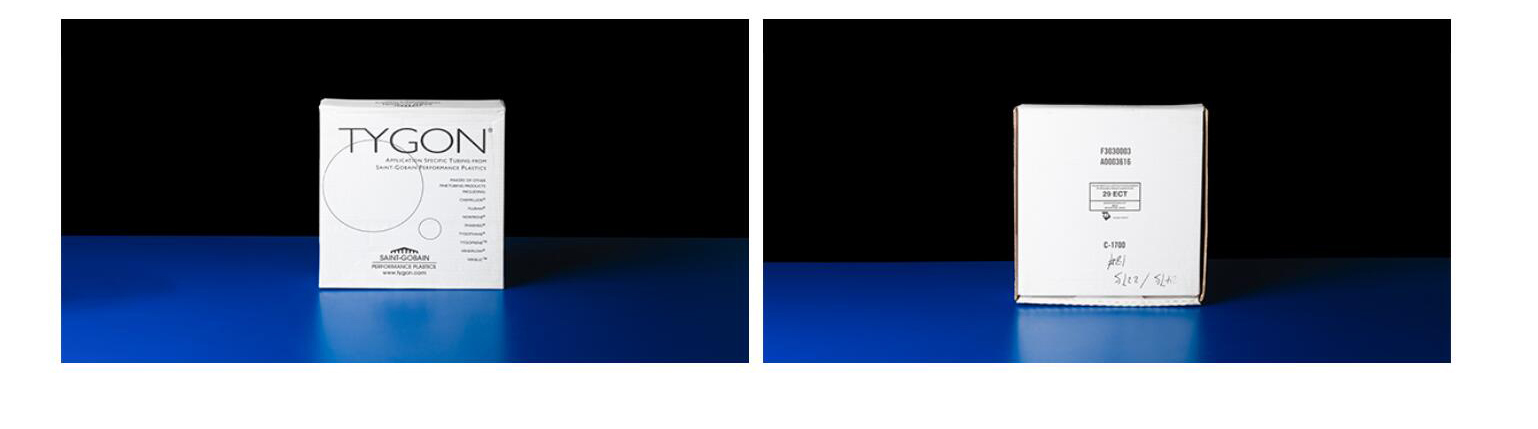

Original factory paper box for independent packaging
